Some facts

Anthropocage


Contribution    : Design and Prototyping
Cost              :  $100
Project Status   :   Completed
Project Year     : 2011
Site Area        : 45 sq.ft
Location         : Kashmiri gate, Delhi

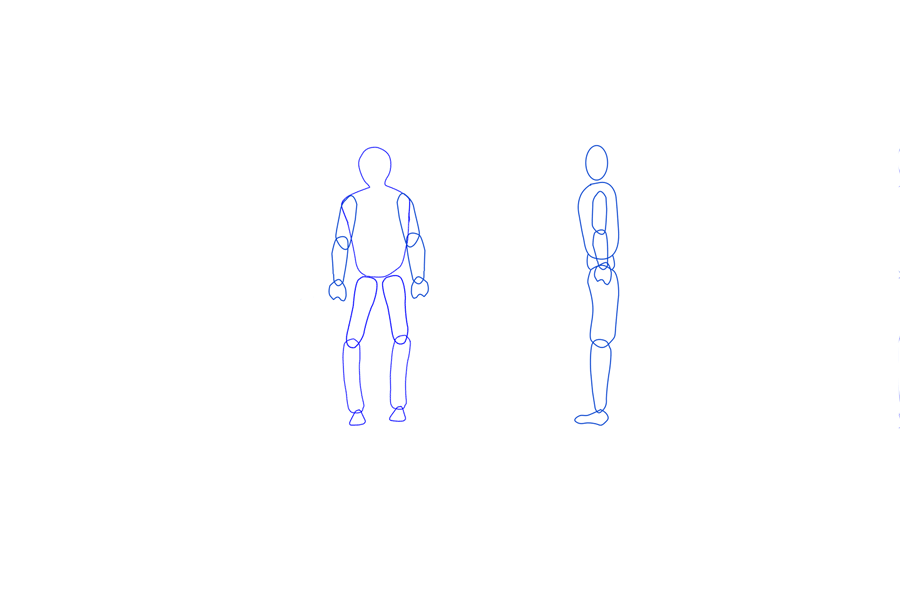

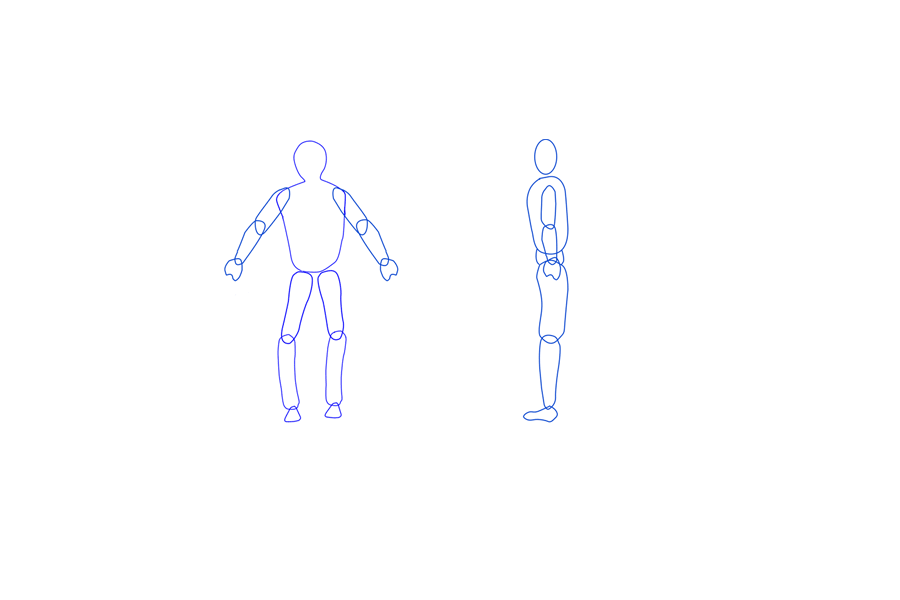

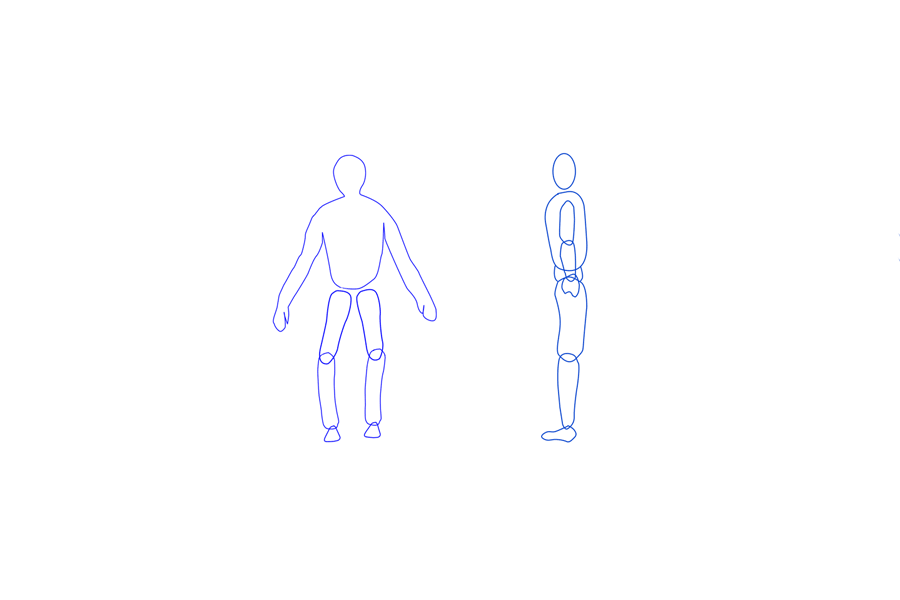

Installing 1:1 cage structure which would accommodate one person and also enabling him to perform five different activities as represented with diagrams. To do this, firstly, a 1:20 mannequin model was developed based on body measurements. After mapping all the activities, its surface in plan and elevations were overlapped and a cage model was created. Using the maxima, minima and point mapping, a full-size model was installed.


Sleeping on ground

Sitting on sofa

FORMAT l.jpg

Jumping

Opening an

almirah
